This map shows fault zones in the Yellowstone National Park region. Click on faults for more information.

Other Earthquake Fault Maps:


Hollister CA Area Faults
Los Angeles Faults
Santa Rosa Faults
San Bernardino Area Faults
Santa Cruz Area Faults
San Francisco Area Faults
Oregon Area Faults

Hilo Tsunami Information


Main Web Map Index


Yellowstone Caldera Border


Yellowstone Caldera Border

Yellowstone Caldera Rock Structure


Yellowstone Caldera

Volcanic Output of Yellowstone Super Volcano
Super Volcano Output

Yellowstone Super Volcano Fallout



Upper Geyser Basin, Yellowstone National Park

Yellowstone Upper Geyer Basin

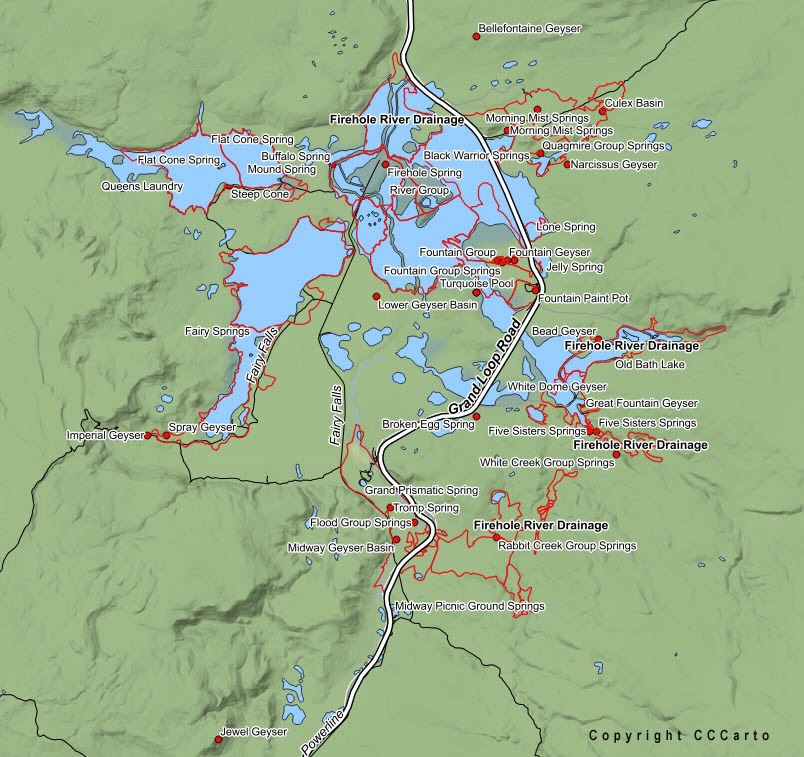

Firehole Basin Geysers
firehole basin


Old Faithful Geyser Area
Old Faithful Area Geysers


Norris Geyser Basin
Norris Geyser Basin

Canyon Village Area Geysers
Canyon Village Area Geysers



Fault Attributes Key


NAME is an 80-character field for the name of the fault (including section name,
i.e., Denali fault, Holitna section). Fault and section are lower case.

CODE is a three-integer field.that defines certainty or reliability of field mapping
(integer one), time of most recent movement (integer two), and amount or rate of slip (integer three).
CODE is composite of the single integer fields ACODE, SLIPCODE, and FCODE
and determines the line type (fault trace) to be plotted.

NUM is a six-character unique USGS identifier that defines a fault or section id. Simple fault
ids are only numeric; section ids are alpha numeric.

AGE is the upper bounding time of the most recent surface-deforming earthquake. The allowable
choices are provided in a pull-down menu.

ACODE is the second integer in CODE and defines the upper bounding time of the most recent
surface-deforming earthquake.
Permissible values are between 1 and 6: 1=historic «150 years; red =cmyk 1096680);
2= post glacial (15,000 years; orange = cmyk 1 38 1000);
3 = late Quaternary «130,000 years; green> cmyk 1002500);
4 =middle and late Quaternary «750,000 years: blue > cmyk 1004440);
5 =Quaternary «1,600,000 years; black 5);
6 = Class B (black halftone)
In the text documentation, Quaternary faults (integer two, 1-5) are Class A structures. Questionable or
suspected structures are Class B (integer two, 6).

SLIPRATE is the assigned slip rate category.

SLIPCODE is the third integer in CODE and defines the assigned slip rate category. Permissible
values are between 1 and 4 and determines line width:
1=>5 mm/year (extra wide; .048):
2 =1-5 mm/year (wide; .0325):
3 =0.2-1 mm/year (medium; .025);
4 =<.2 mm/year (thin; .015)

SLIPSENSE is normal, reverse, strike slip, thrust

DIPDIRECTION is one of the eight quadrant dip directions for the entire fault or section, not the
individual arc. C = center E =east N_ =north NE =northeast NW =northwest S =south SE =southeast SW =
southwest W_ =west
SLIPDIRECT (we are not using that field anymore and can be left empty) FCODE is the first integer
in CODE and defines how well the fault is located and expressed in the landscape. Permissible values are

between 1 and 3:
1 = fault landforms are more continuous than discontinuous and mapping is accurate at
given MAPPEDSCALE (solid);
2 = fault landforms are more discontinuous than continuous and mapping is accurate at
given MAPPEDSCALE (dashed);
3 = location of fault is inferred (dotted)
FTYPE is one of three allowable choices provided in a pull-down menu: Well constrained (FCODE 1),
Moderately constrained (FCODE 2), and Inferred (FCODE 3)

MAPPEDSCALE is one of four allowable choices provided in a pull-down menu.
Mapped scale will control visualization of the fault at various scales.
1:24,000, fault should be more continuous than discontinuous and mapping is accurate at <10,000 scale.
1:50,000, fault should be more continuous than discontinuous and mapping is accurate at <25,000 scale.
1:100,000, fault could be more discontinuous than continuous and mapping is accurate at <50,000 scale.
1:250,000, fault location may be inferred or is poorly constrained.


Click on the fault lines for more information.
Note* The earthquake faults are color coded by unique name and section not type.

Data source: USGS
CCCarto is not responsible for data errors or omissions, use as reference only.
